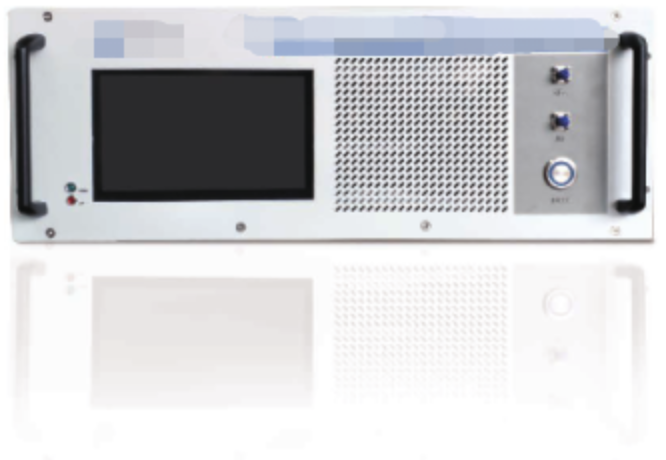

Model：EWPA1826G-P40
Frequency： 18-26.5G
Output Power： 40w
Product features
Broadband high power all solid state solution.
Compared with TWT products, it has high reliability.
Circuit structure compact, small size and other advantages.
The harmonic suppression index is better than the TWT product.
Adopt multi – channel synthesis technology, the system redundancy is strong.
Output end high power isolation, under the total reflection to ensure that the system is not damaged.
It can be used when one or more amplifiers fail.
Ensure that the system continues to work without complete failure.
This series of products can completely replace similar products imported from abroad.
This series of products can be customized according to the special needs of users.
Model Frequency Output Power Gain Gain flatness
Mhz W db db
EWPA1826G-P20 18000-26500 20 43 士 3.5
EWPA1826G-P40 18000-26500 40 46 士 3.5
EWPA1826G-P80 18000-26500 80 49 士 3.5
EWPA1826G-P100 18000-26500 100 50 士 3.5
EWPA1826G-P200 18000-26500 200 53 士 3.5
EWPA1826G-P300 18000-26500 300 55 士 3.5
